914431E 2N SIP Mic organic

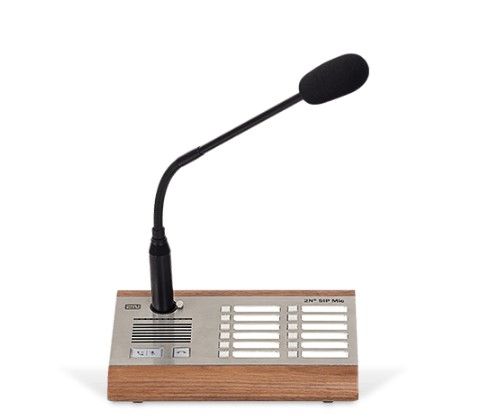

The 2N SIP Mic, code 914431E, is a complete and autonomous IP microphone console, designed to manage advertisements and pages efficiently and flexibly.

Key Features

This device includes a high-quality gooseneck microphone, 12 configurable buttons, and an integrated audio management server, eliminating the need for a separate server or other additional devices.

Configuration and Use

The console can be easily integrated with Axis network speaker systems and connected to the network using a single cable with PoE (Power over Ethernet) power. The configuration takes place through a user-friendly web interface.

Paging and Announcements

The 2N SIP Mic is ideal for live or pre-recorded announcements and pages. The 12 buttons can be associated with individual zones or combinations of zones, and the settings can be easily changed as needed.

Multizone functionality

The console supports communication in multiple zones, allowing targeted and personalized ads. Each button can be configured for specific actions, such as sending announcements to selected areas.

Integration and Scalability

Based on open standards, the 2N SIP Mic can be integrated with other IT systems and with call management systems (PBX) through the SIP protocol. This flexibility makes it scalable and suitable for various environments, such as schools, amusement parks, shops and public transport terminals.

Technical Specifications

• 10/100Base-TX LAN interface
• 12 V DC/2 A or 802.3af PoE power supply
• Built-in microphone and speakers
• VoIP and SIP-INFO support
• DTMF detection according to RFC2833, in-band and SIP-INFO
• Support for streamed audio

Its simple installation and management through a web interface make it a practical and efficient option for managing advertisements and communication in a professional environment.
