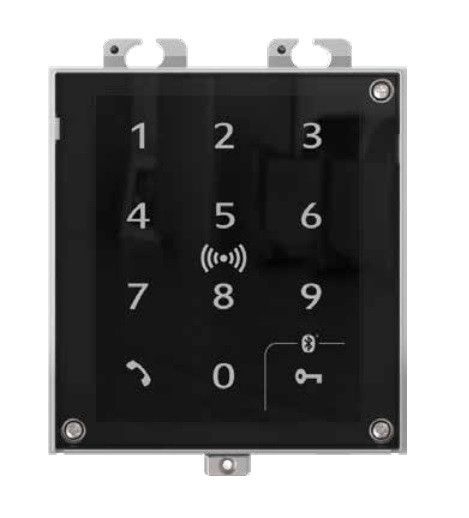

91550947-S 2N IP Verso - Touch keypad & Bluetooth & RFID read

The 2N 91550947-S module is a multifunctional device designed to integrate with the 2N IP Verso and 2N LTE Verso systems, offering a complete and flexible solution for access management.

Key Features

This module combines a touch keyboard, Bluetooth technology and RFID reading, providing a wide range of options for authentication and access control.

Authentication Technology

• Support for 125 kHz and 13.56 MHz RFID cards, including HID formats.
• NFC compatibility for greater flexibility.

Bluetooth connectivity

The module is compatible with Bluetooth 5.0 (BLE), offering a stable and energy-efficient connection.

Technical Performance

• Reception sensitivity up to -93dBm.
• Adjustable range, from 3 meters to up to 10 meters.

User Interface

The touch interface allows intuitive and easy-to-use interaction, while the associated application allows you to perform tap operations and access management remotely.

Mode of Use

• Touch mode for manual entry of codes.
• Tap mode through the application.
• Card mode for RFID authentication.

Weight and Dimensions

• Net weight: 0.20 kg.
• Gross weight: 0.40 kg.

The 2N 91550947-S module is ideal for projects that require secure, flexible and technologically advanced access management.
