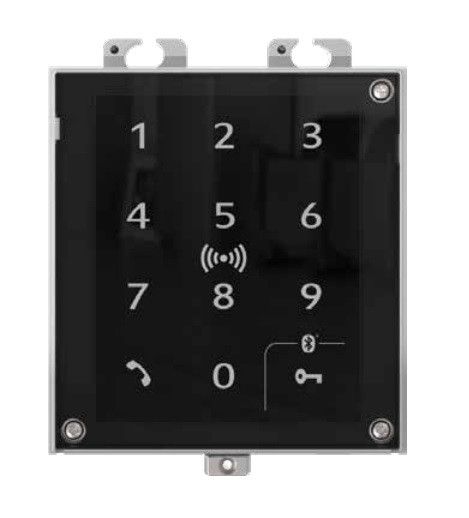

91550947 2N IP Verso - Touch keypad & Bluetooth & RFID read

The 2N 91550947 IP Verso Bluetooth and RFID Proximity Reader module is a versatile and highly functional component for access control and intercommunication systems.

Key Features

This module supports both 125 kHz and 13.56 MHz RFID technologies, in addition to including NFC functionality and a touch keypad.

Reading Technology

• Compatible with 125 kHz and 13.56 MHz RFID cards.
• Support for NFC technology.
• Touch keyboard with capacitive layer technology (0.1 pF sensitivity) for greater reliability.

Access Features

The module allows access via Bluetooth, offering an alternative and modern solution compared to traditional access systems with RFID cards or keys.

• Quick access: opening the door in just 0.3 seconds from the moment of recognition.
• Convenience: users can log in without having to take their phone out of their pocket.
• Security: Sensitive data is effectively protected, making it impossible to intercept and reuse login credentials.

Integration with Other Modules

The module is designed to be integrated with other elements of the 2N IP Verso system, such as intercom, fingerprint readers and sensors.

• 2N bus connection for easy integration with other modules.
• A 220 mm long interconnect cable is included for easy installation.

Environmental Conditions

The module is designed to operate under a wide range of environmental conditions.

• Operating temperature: -20°C to 55°C.
• Relative humidity: up to 90% without condensation.
