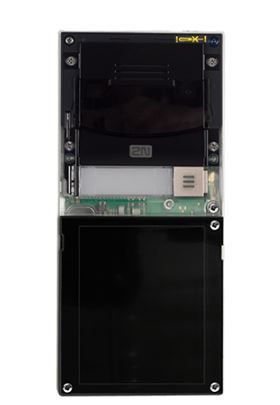

9155101B 2N IP Verso - Main unit without camera - black

The 2N 9155101B is a base unit of the Verso IP intercommunication system, designed to offer a modular and customizable solution for access control and communication.

Key Features

This device is characterized by its versatility and the ability to adapt to the different needs of users. Here are some of its main features:

Power and Connectivity

• 12V ± 15%/2A DC power supply or through PoE (802.3af, Class 0 - 12.95W)
• 10/100BASE-TX LAN connectivity with Auto-MDIX, RJ-45
• NC/NO switch output, max 30V/1A AC/DC
• Active switch output from 8 to 12V DC, max 400mA

Interface and Controls

• Transparent buttons with white backlight and easily removable labels
• Configurable number of buttons from 1 to 146
• Optional numeric keypad
• 13.56 MHz and 125 kHz RFID card reader option, with NFC support

Audio and Video

• Built-in microphone
• 2W speaker with 1 kHz sound pressure 1 m away of 78 dB
• Sound codes: G.711, G.729, G.722, L16/16kHz
• Note: This base unit does not include the camera, but it can be integrated with optional camera modules

Safety and Resistance

• RSA-1024 and AES-128 encryption
• Water and dust resistance with IP54 and IK08 certification
• Operating temperature: -40°C — 60°C
• Operating relative humidity: 10%-95% (non-condensing)

Supported Protocols

• SIP 2.0 (RFC-3261)
• DHCP option 66
• ONVIF
• SMTP
• 802.1x
• RTSP, RTP, TFTP, HTTP, HTTPS, Syslog

Installation and Dimensions

• Surface or recessed installation
• Dimensions vary depending on the configuration of the modules and the type of installation
• Example dimensions for surface installation: 107 (L) x 130 (H) x 28 (D) mm for 1 module
