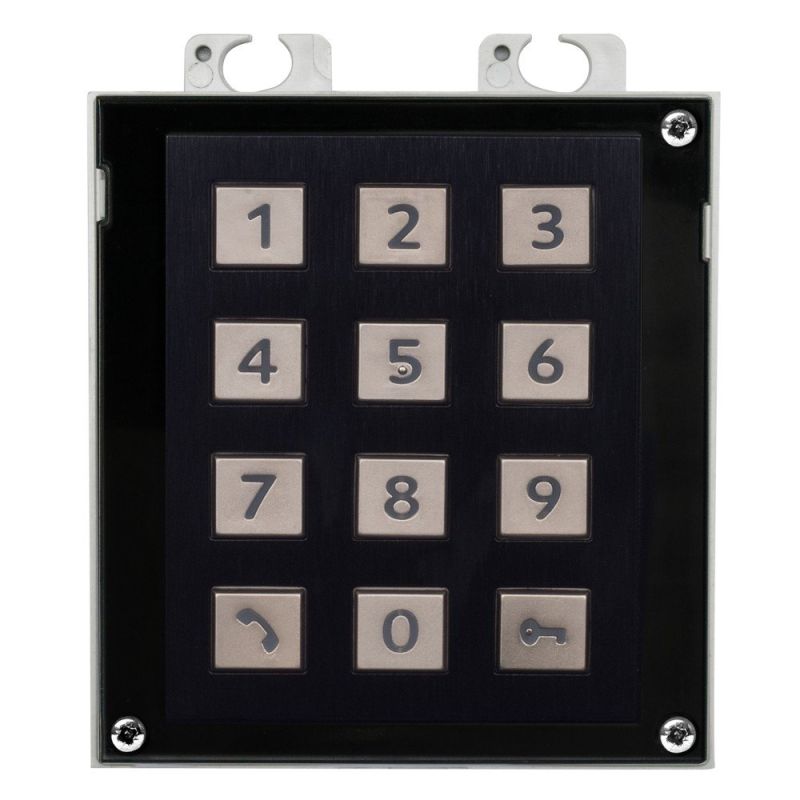

9155031B 2N IP Verso - Keypad module - black

The 2N 9155031B numeric keypad module is an essential component of the 2N Helios IP Verso modular intercommunication system. Designed to be used in conjunction with the Verso Black 9155101B or 9155101CB main units, this module allows users to make calls using phonebook positions or telephone numbers, control locks and access other functions using a numerical code.

Key Features

• 12 backlit numeric keys with white LEDs.
• Usable within the same frame as the main units, individually in their own frame or in combination with other functional modules in a multi-module chassis.
• Ideal for multiple residential buildings and business complexes.

Technical Specifications

• Number of keys: 12
• Backlight: Via white LEDs
• Operating temperature range: -40°C ~ 60°C
• Protection level: IP54
• Dimensions: 105 (H) x 97 (W) x 27 (D) mm
• Net Weight: 0.40kg
• Gross weight: 0.70kg

Use and Integration

The 9155031B numeric keypad module is designed to offer a flexible and customizable solution for intercommunication systems. It can be easily integrated with other components of the 2N IP Verso system, allowing efficient management of access and communication functions.
