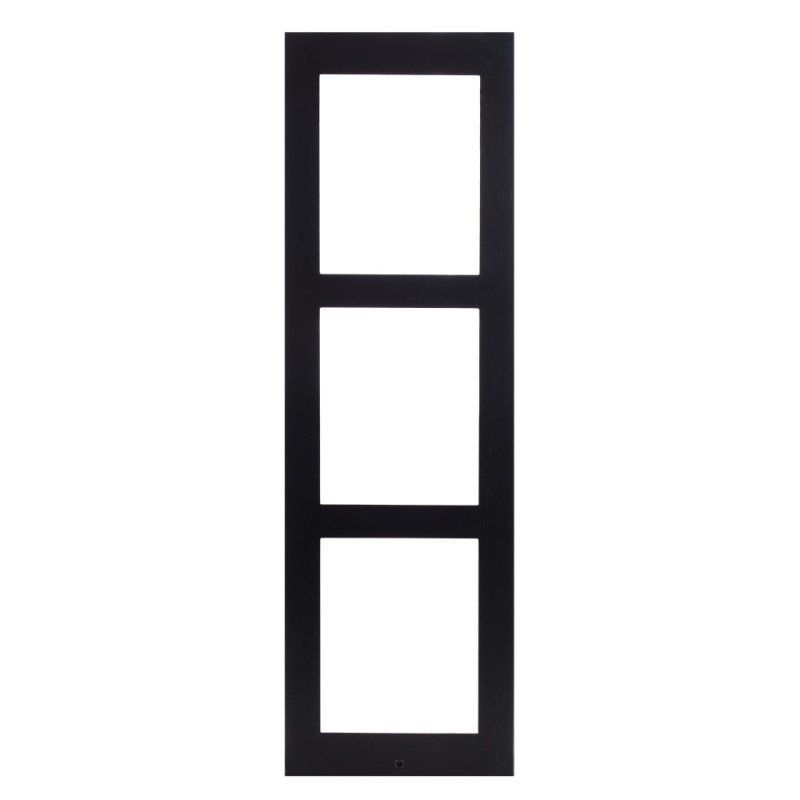

9155023B 2N IP Verso - Frame for surface installation

The 2N 9155023B product is a frame for the surface installation of the 2N IP Verso intercom, designed to accommodate up to 3 modules. This frame is specifically designed to simplify the installation of the intercom on different surfaces, without the need for additional accessories.

Technical characteristics

The frame is made of sturdy galvanized with a nickel and black surface finish, ensuring a solid structure and a long life.

sizes

• Width: 107 mm
• Height: 339 mm (for 3 modules)
• Depth: 28 mm

Environmental Resistance

• Operating temperature: -40°C to +60°C
• Storage temperature: -40°C to +70°C
• Operating relative humidity: 10%-95% (non-condensing)

Protection

• Protection class IP54 and IK08

Installation

The frame is ideal for installations on flat surfaces, but the use of a support plate is recommended for installations on glass or uneven surfaces.

Modularity

The modular structure allows you to customize the intercom according to specific needs, adding or removing modules as necessary.
