9155036 2N IP Verso - Display Touch module
- MT Code
- 2NN_9155036
- Manufacturer Code
- 9155036
- Brand
- 2N

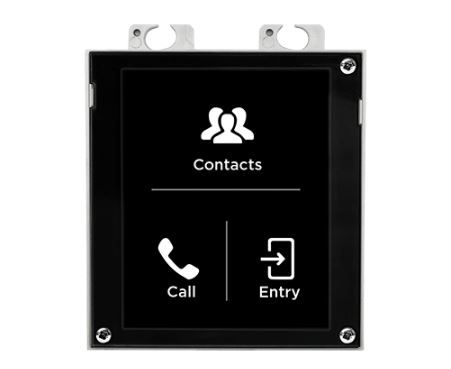

The 2N 9155036 touch display module is designed for the 2N IP Verso intercom system. This four-inch LCD display stands out with its intuitive controls and search function.
Key Features

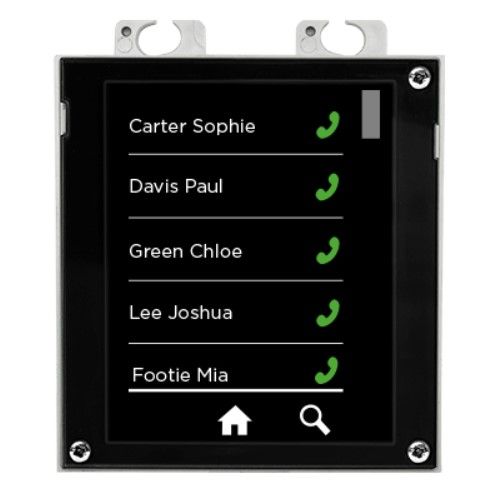

The touch display offers a number of useful features for users. One of the most significant features is the tree-structured address book, which can hold up to 10,000 contacts. Users can easily create and navigate through this structure to find people or departments.
User Interface

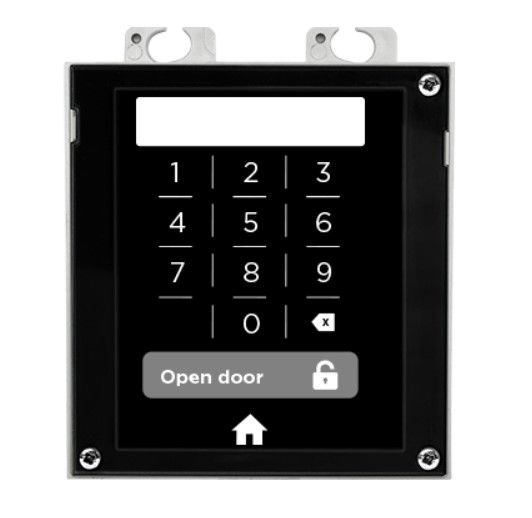

The display includes a tactile keyboard for entering the access code, which can be used safely thanks to the random keyboard function, preventing external observers from detecting the access code.
Visualization and Personalization
During periods of inactivity, the display may show a slide presentation, such as a company logo, important announcements, or thematic images. This functionality allows for significant customization of the interface.
Technical Specifications
- Resolution: 320 × 214 pixels (H x V)
- Contrast ratio: 400
- Brightness: 350 cd/m²
- Viewing angle: 80° from all directions
- Weight: 0.176 lb
- Resistance level: IK7
- Operating temperature: -4°F to 140°F
The touch display is designed to be used both indoors and outdoors and is powered, set and controlled directly from the main unit of the 2N IP Verso intercom.
| Codice Produttore | 9155036 |
|---|---|
| Brand | 2N |
