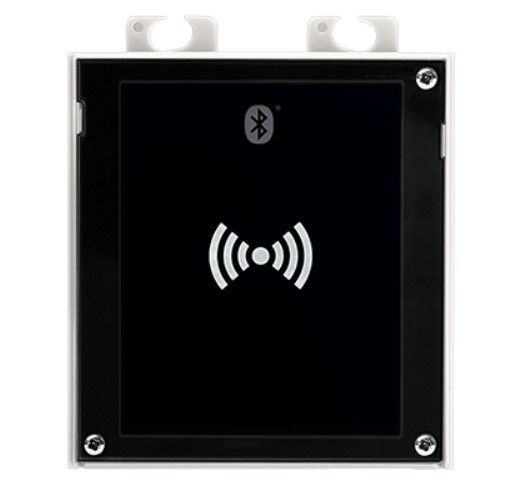

91550945-S 2N IP Verso - Bluetooth & RFID reader 125KHz

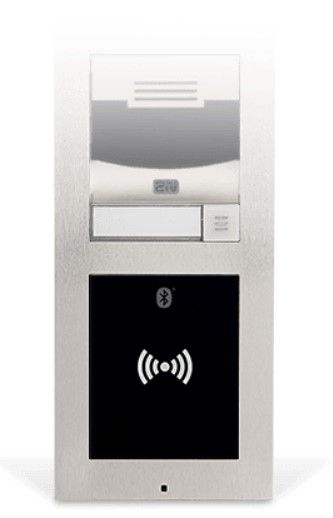

<p (The 2N 91550945-S Bluetooth and RFID reader is a module compatible with the 2N® IP Verso and 2N® LTE Verso intercoms, designed to offer secure and modern access. This module combines multi-frequency RFID technology with Bluetooth mobile credentials.

Key Features

The reader supports RFID frequencies at 125 kHz and 13.56 MHz, allowing the reading of insecure and secure cards. In particular, it supports cards such as EM4xxx, HID Prox with 125 kHz support, and secure ISO14443A cards (MIFARE® DESFire®), PicoPass (HID iClass), FeliCa, ST SR (IX) and NFC (2N® Mobile Key).

RFID reader

• Supports 125 kHz and 13.56 MHz frequencies
• Bind secure MIFARE® DESFire® EV2/EV3 cards using 2N® PiCard technology
• Connect PACs ID (HID iClass cards with SIO object)

Bluetooth player

• Bluetooth 5.0 (BLE) compatible
• Adjustable range (short up to 3m, long up to 10m)
• RSA-1024 and AES-128 encryption for security
• Receiving sensitivity up to -93 dBm
• Operating mode: touch, tap in the app, card

Power and Connectivity

The module can be powered via PoE (802.3af, class 0-12.95W) or via 12V ± 15% /2A DC power supply. Network connectivity is guaranteed by an RJ-45 jack for 10/100BASE-TX connections with auto-MDIX.

Other Technical Details

• Robust zinc frame with surface finish (nickel and black)
• Built-in buzzer (97dBA, 2730Hz) and microphone
• 2 inputs in passive/active mode (-30V to +30V DC)
• IP54 and IK08 protection rating
• Operating temperature: -40°C to +60°C
• Dimensions (surface mount): 107 (W) x 130 (H) x 28 (D) mm
• Net weight: 0.20kg, gross weight: 0.40kg

Access Features

The module allows you to open doors using a smartphone with the 2N® Mobile Key app. You can authenticate yourself by touching the reader or simply leaving your phone in your pocket and touching the reader in Touch mode.
