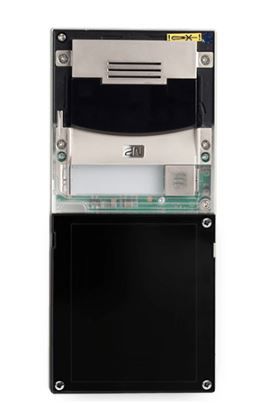

9155101C 2N IP Verso - basic unit with camera

2N 9155101C Product Description

The 2N Helios IP Verso, code 9155101C, is a modular door intercom equipped with a camera, designed to offer a complete and reliable solution for access control and security.

Key Features

This device is characterized by a modular structure, which allows customization according to the specific needs of the user.

Interface and Communication

• It supports the SIP 2.0 protocol (RFC 3261) for stable, high-quality voice communication.
• Network connection via 10/100BASE-TX LAN with Auto-MDIX, RJ-45.
• Power supply possible via 802.3af PoE (Class 0 - 12.95W) or 12V ± 15%/2A DC.

Audio and Video Components

• Built-in microphone for clear audio recording.
• Built-in 2W speaker for powerful audio reproduction.
• Supported audio codecs: G.711, G.729.
• Camera with 1280 x 960 px JPEG resolution and 640 x 480 px video resolution.
• 90-degree view and IR night vision.
• Supported video codecs: H.263+, H.263, H.264, MJPEG, MPEG-4.

Buttons and Keyboard

• Transparent speed call buttons with white backlighting and easily replaceable name labels.
• Option for a form with a numeric keypad.
• Maximum number of buttons: 146 (1 standard button, option for a 5-button module).

Card Reader and Output

• RFID card reader supports Mifare Classic 1k & 4k, DESFire EV1, Mini, Plus S&X, SmartMX, Ultralight, Ultralight C, SLE44R35, my-d move (SLE66Rxx), PayPass, Legic Advant Calypso, CEPAS, Moneo, PicoPass, HID iClass.
• Relay outputs with NC/NO contacts, max 30V/1A AC/DC.

Resistance and Protection

• IP54 and IK08 protection for safe outdoor use.
• Operating temperature: -40°C — 60°C.
• Operating relative humidity: 10%-95% (non-condensing).

Dimensions and Weight

• Dimensions: 233 (H) x 105 (W) x 22 (D) mm.
• Net weight: 1.60 kg.
• Gross weight: 2.20 kg.
