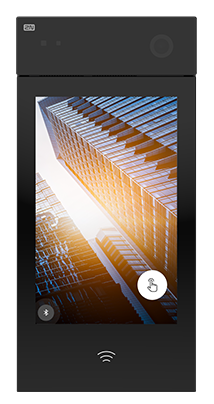

9157101P 2N IP Style main unit with installed antibacterial

MT Code: 2NN_9157101P
Manufacturer Code: 9157101P
Brand: 2N

The 2N IP Style, code 9157101, is the latest generation of touchscreen door intercom, ideal for access control solutions in residential buildings, multi-user offices, coworking spaces and gated communities.

Design and Features

This intercom stands out for its elegant design and its large 10-inch display, making it a visually appealing point of contact for any input.

Audio and Microphone

Equipped with 2 integrated microphones, the 2N IP Style offers excellent audio quality. The speaker power is 2x4 W/4 Ω, with a maximum sound pressure level of 85 dB at 1 kHz and 1 meter away. The volume adjustment is adjustable with automatic adaptive mode, and supports full duplex communication with echo cancellation (AEC).

Supported audio codecs include G.711, G.729, G.722, and L16/16kHz.

Camera and Video

<p-The 2N IP Style camera is equipped with an Axis artpec-7 processor, which guarantees video quality comparable to the best external IP cameras. The maximum resolution for JPEG images is 2560x1920 (4:3) or QHD (16:9), while video calls can reach the same resolution. The frame rate can go up to 60 fps at maximum resolution.

<p-The camera also includes features such as Wide Dynamic Range (WDR) and IR adaptive night vision, ensuring color images even in low light. The sensitivity of the sensor is 14000 etrou/lux sec, with a viewing angle of 110° horizontal, 95° vertical and 150° diagonal.

Access and Security

<p-The 2N IP Style supports different access modes, including QR code recognition, RFID technology and Bluetooth access. QR codes can be generated through PC software or smartphone apps and sent to users, allowing access for limited periods of time, specific days of the week, or a limited number of uses.

<p-2N's WaveKey technology allows the distribution of mobile access credentials in a few moments, without the need for a cloud connection or to physically meet the user.
