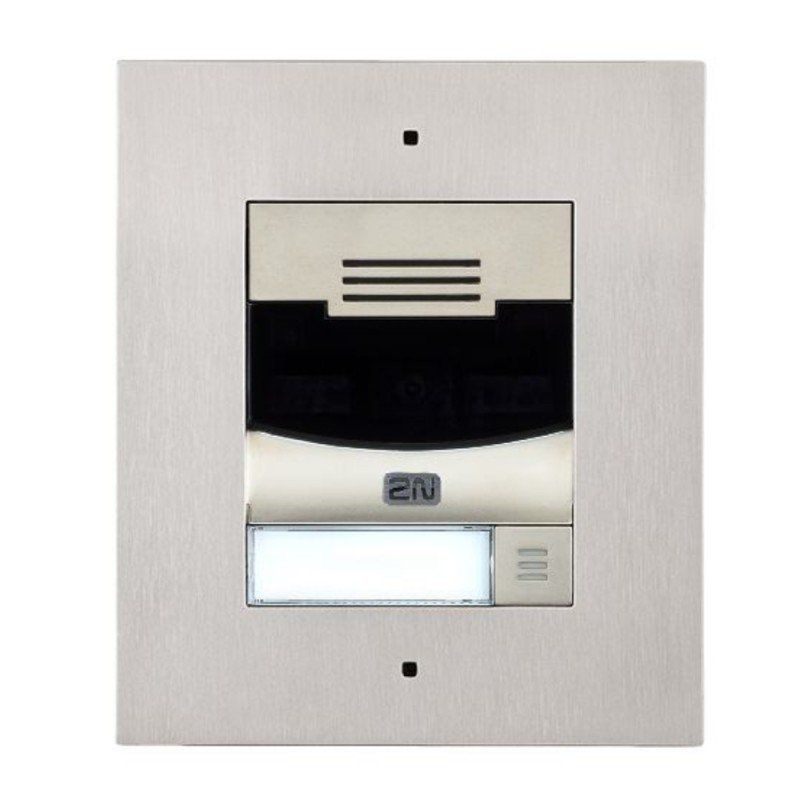

9155301CF 2N IP Solo with camera -nickel

The 2N 9155301CF is a compact and versatile IP intercom, ideal for integration into smart home and access control systems. This device offers a combination of video calling and input control capabilities, making it an excellent choice for household or business entrances.

Technical characteristics

The 2N 9155301CF is equipped with a SIP 2.0 signaling protocol (RFC 3261), ensuring efficient and standardized communication.

User Interface

The intercom has a transparent button with white backlight and an easily removable label, ensuring an intuitive user experience.

Audio and Video

The device includes an integrated microphone and a 2W speaker, with a sound pressure measured at 1 kHz 1 meter away. The camera resolution is 1280 x 960 pixels in JPEG format and 640 x 480 pixels for video calls. The view covers an angle of 120° horizontal, 90° vertical and 145° diagonal, with the night vision function.

Codecs and Protocols

• Audio codecs: G.711, G.722, G.729, L16/16kHz
• Video codec: H.263+, H.263, H.264, MJPEG
• Supported protocols: SIP 2.0, DHCP opt. 66, ONVIF, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog

Power and Connectivity

The intercom can be powered through a 12V ± 15%/2A DC power source or through 802.3af PoE (Class 0 - 12.95W). The network connection is made through a screw connector, supporting 10/100BASE-TX with auto-MDIX.

Resistance and Durability

The device is designed to operate in a temperature range from -40°C to 60°C and has IP54 weather protection and IK08 vandalism resistance.

Design and Dimensions

The 2N 9155301CF has a nickel finish and measures 130 mm in width, 153 mm in height and 5 mm in depth, with a net weight of 1 kg and a gross weight of 1.3 kg.
