9155301CBS 2N IP Solo with camera - black

MT Code: 2NN_9155301CBS
Manufacturer Code: 9155301CBS
Brand: 2N

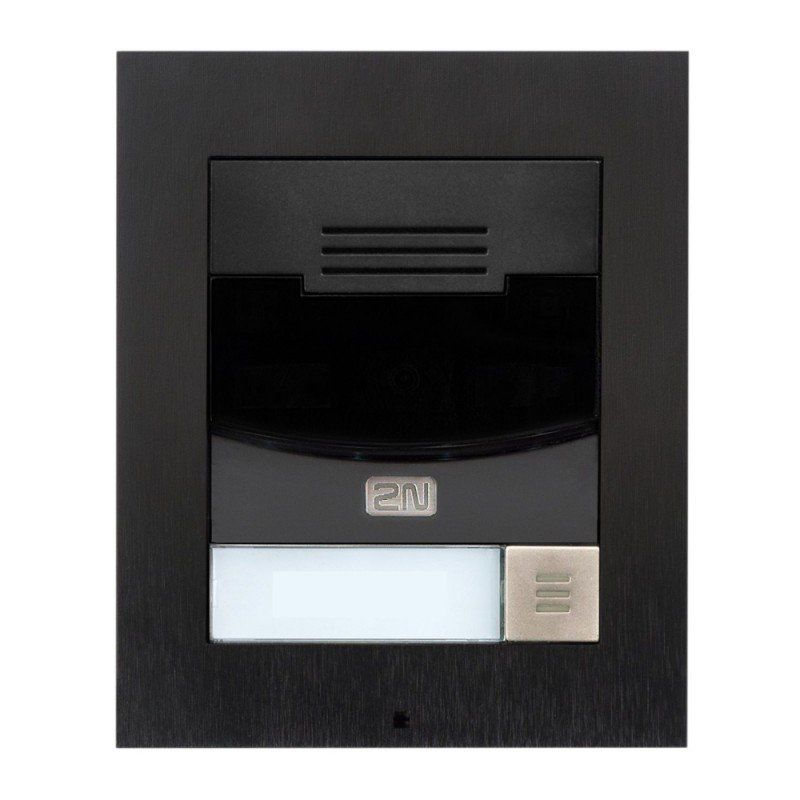

The 2N 9155301CBS IP Solo is a compact and versatile IP intercom, ideal for installation in smart home entrances. This device features a sleek design and sturdy construction, with a black finish.

Key Features

The 2N 9155301CBS features a transparent button with white backlight and an easily removable label, ensuring easy identification and use.

Audio and Video

The device includes a built-in microphone and a 2W speaker, which ensures clear communication. The wide-angle HD camera offers a resolution of 1280 x 960 pixels in JPEG format and 640 x 480 pixels during video calls. The camera is also equipped with night vision and a viewing angle of 120° horizontal, 90° vertical and 145° diagonal.

Protocols and Codes

The 2N 9155301CBS supports the SIP 2.0 protocol (RFC 3261) and includes audio codes such as G.711, G.722, G.729, and L16/16kHz. For video, H.263+, H.263, H.264 and MJPEG codes are supported.

Power and Connectivity

The intercom can be powered through a 12V ± 15%/2A DC power source or through 802.3af PoE (Class 0 - 12.95W). Connectivity is guaranteed by a screw LAN connector, supporting 10/100BASE-TX with auto-MDIX.

Supported Protocols

SIP 2.0
DHCP option 66
ONVIF
SMTP
802.1x
RTSP
RTP
TFTP
HTTP
HTTPS
Syslog

Environmental Resistance and Tolerances

The device is designed to operate in a wide temperature range, from -40°C to 60°C, and has IP54 protection against infiltration and IK08 resistance to vandalism.
