9151021 2N IP Force Induction loop

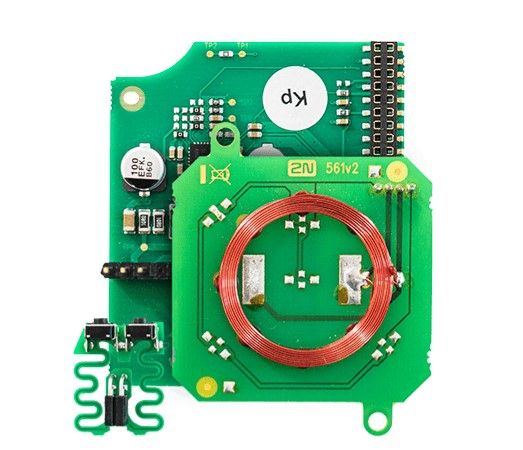

The 2N 9151021 is a magnetic induction module designed to be integrated into the 2N IP Force intercom. This accessory is specifically designed to transfer audio from the intercom to people who wear a hearing aid equipped with a magnetic field sensor.

Operation

The magnetic induction module operates by transmitting sound wirelessly to the hearing aid's headphones, ensuring that people with hearing disabilities can clearly receive communications.

compatibility

This module is compatible with the following 2N IP Force models: 9151101RPW, 9151101CHRPW, 9151102CHRW, and 9151102RW. It is important to note that the installation of the magnetic induction module makes it impossible to install an RFID card reader inside the intercom.

Technical characteristics

• Part number: 9151021
• Axis part number: 02338-001
• Wireless audio transmission to the hearing aid headphones
• With respect to the accessibility requirements for people with hearing disabilities
• Dimensions: 144 x 100 x 31 mm
• Weight: 0.3 kg
• Cover: IP65 (with 5—10 mm diameter round cable)
• Temperature range: −20 — +50 °C

Installation

The magnetic induction module must be installed inside the main unit of the 2N IP Force. Be sure to follow the installation instructions to ensure optimal operation.
