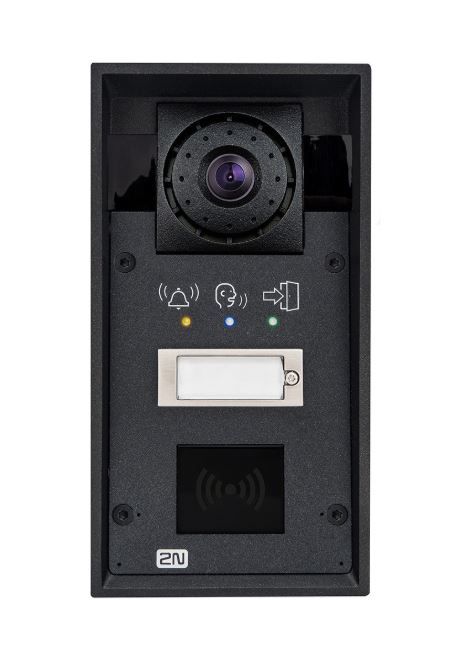

9151101CHRPW 2N IP Force - 1 button- HD camera- pictograms- 10W
- MT Code
- 2NN_9151101CHRPW
- Manufacturer Code
- 9151101CHRPW
- Brand
- 2N
Key Features
Access and Security
This intercom offers robust access control through an RFID card reader, an optional numeric keypad and an integrated camera. It supports 13.56 MHz and 125 kHz frequencies, and also includes support for NFC with the 2N® Mobile Key application.
Camera and Night Vision
The intercom is equipped with an HD camera with a resolution of 1280 x 960 pixels, a viewing angle of 135° horizontal and 109° vertical, and a night vision function.
Audio and Communication
It has two integrated microphones and a 10W speaker with a sound pressure of 94 dB at 1 kHz 1 meter away. Supported audio codecs include G.711, G.729, G.722, and L16/16kHz.
Interface and Power Supply
The intercom supports 12V ± 15% /2A DC power supply or 802.3af PoE (Class 0 - 12.95W). It also includes a 10/100BASE-TX LAN interface with auto-MDIX function and an active switching output from 9 to 13V DC.
Protocols and Communication
It supports SIP 2.0 (RFC 3261), DHCP option 66, SMTP, 802.1x, RTSP, RTP, TFTP, HTTP, HTTPS, Syslog, and ONVIF protocols.
Buttons and Keyboard
The intercom is available with 1, 2 or 4 buttons, with easily removable labels and white backlighting. It is also possible to add an optional numeric keypad.
Mechanical Properties
- Net weight: up to 4,409 lb/Gross weight: up to 5,511 lb
- Operating temperature: -40°F to 131°F
- Storage temperature: -40°F to 158°F
- Operating relative humidity: 10%-95% (non-condensing)
- Dimensions: 8.543 x 4.291 x 3.268 inches
Codice Produttore | 9151101CHRPW |
---|---|
Brand | 2N |
