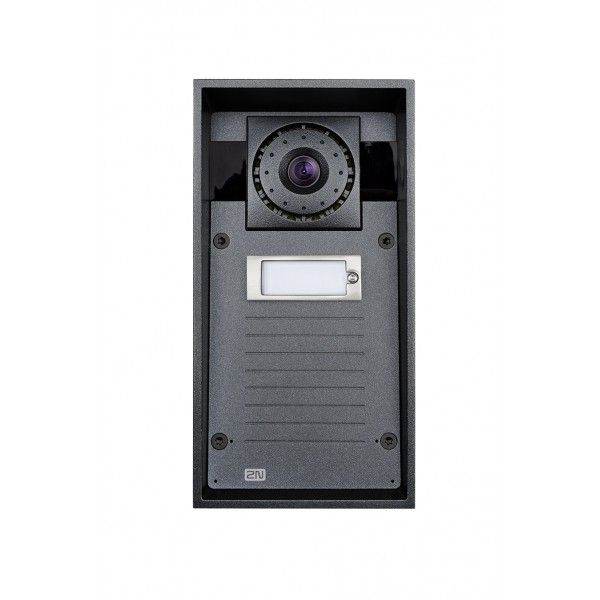

9151101CHW 2N IP Force - 1 button & HD camera & 10W speaker

The 2N 9151101CHW is an extremely robust and versatile IP intercom, designed to withstand the most demanding conditions. This device is part of the 2N Helios IP Force series and offers a series of features that make it ideal for applications in harsh environments.

Key Features

The 2N 9151101CHW is IP69K and IK10 rated, ensuring total protection against dust and high pressure water, as well as resistance to damage from vandalism.

Components and Functionality

• Transparent button with white backlight and easily replaceable label.
• Integrated HD camera with 640x480 video resolution and 1280x960 JPEG resolution, wide viewing angle and ONVIF-S compliance.
• Support for controlling two electric locks and the ability to connect an additional switch.
• Full-duplex intercom with two integrated microphones and a 10W speaker.

Network and Power Integration

The device supports the SIP protocol and connects to the IP network via an Ethernet cable. Power can be supplied through the network cable via PoE or using a separate power supply.

Security and Management Features

• Simple safety relay to prevent unauthorized manipulation.
• Time profile management to set doors to close at specific times, ideal for offices, schools or warehouses.

Construction and Materials

The 2N 9151101CHW is built with a sturdy aluminum frame, ensuring long life and resistance to extreme environmental conditions.
