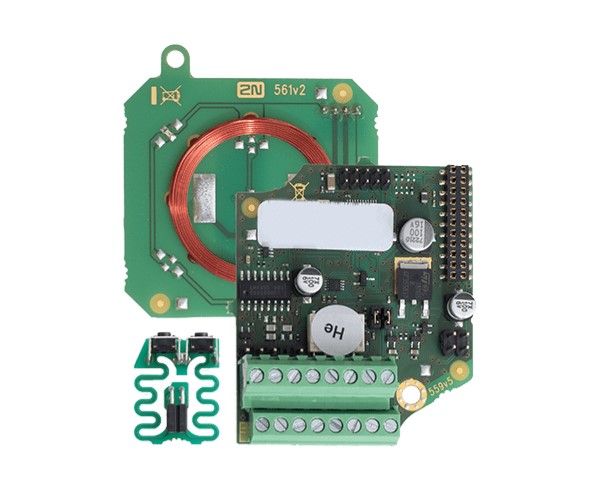

9151031 2N Helios IP 13.56MHz NFC ready smart card reader

The 2N 9151031 card reader is an internal device designed for installation in the 2N IP Force system. This reader supports a wide range of RFID card standards, including Mifare, HID iClass, DESFire, and others, as well as offering compatibility with NFC technology.

Technical characteristics

The reader operates at a frequency of 13.56 MHz and includes several features that make it ideal for access and control applications.

Interfaces and Connections

• Wiegand interface for integration with existing access control systems.
• Two logical inputs for customizing functionality.
• An output relay and an active output for controlling external devices.

Security Features

• Reading the secure PACS identification number from HID iClass cards or the UID serial number from other cards.
• Tamper switch to indicate the opening of the front panel, ensuring a high level of security.

Compatibility and Integration

The reader is compatible with the 2N IP Force equipped with two buttons and pictograms, facilitating integration into existing systems.

Applications

This reader is particularly suitable for access control applications in commercial, industrial and residential environments, where a high level of security and flexibility are required.
