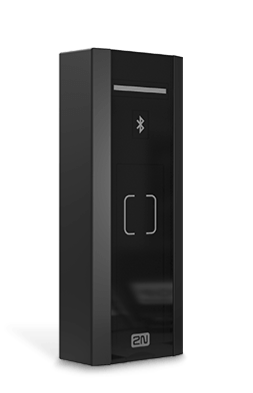

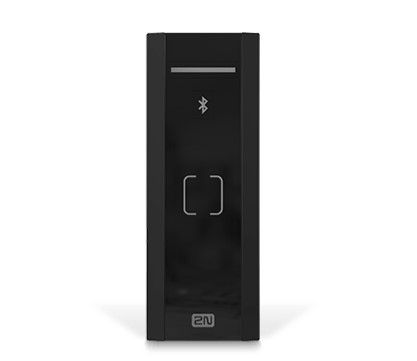

916115 2N Access Unit M Bluetooth & RFID

MT Code: 2NN_916115
Manufacturer Code: 916115
Brand: 2N

The 2N Access Unit M Bluetooth & RFID (code 916115) is an elegant and reliable access control system, designed to meet the needs of modern access infrastructures.

Key Features

This device combines an access reader and a controller in a single unit, making it ideal for access control both inside and outside buildings.

RFID and NFC card reading

The 2N Access Unit M supports the reading of RFID cards at frequencies of 13.56 MHz and 125 kHz. Supported cards include ISO14443A (Mifare, DESFire), PicoPass (HID iClass), and FeliCa ST SR (IX) [5>.

Bluetooth connection

Bluetooth 5.0 technology, in compliance with BLE (Bluetooth Low Energy), allows users to open doors using their smartphone with the 2N® Mobile Key app. The Bluetooth reception sensitivity reaches up to -94.8 dBm per 1Mbps [5>.

Power and Connectivity

The device can be powered via PoE (Power over Ethernet) or via an external 12V power supply. The connection to the LAN network is via a UTP/STP cable (category CAT-5e or higher) and the device is equipped with the auto-MDIX function, allowing the use of both direct and crossed cables [5>.

Integration and Functionality

The 2N Access Unit M includes electrical switches for integrated locks, with extensive setting options. It also supports configuration via web interface, HTTP server for API, SNTP client for time synchronization and SMTP client for sending emails. In addition, it has an automatic firmware and configuration update function via TFTP/HTTP client [5>.

Resistance and Durability

The device is constructed from robust materials, including an ASA/PC body and 3 mm chemically tempered glass. It is IP55 rated for weather resistance and can operate in a temperature range from -40 °C to 60 °C and relative humidity from 10% to 95% (non-condensing) [5>.
