916114 2N Access Unit M 125KHz- 13.56MHz- NFC

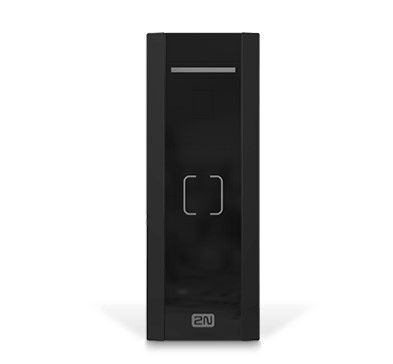

The 2N Access Unit M with multi-frequency RFID reader (code 916114) is an elegant and reliable device for access control, ideal for office environments and other professional settings.

Key Features

This device combines an access reader and a controller in a single module, making it easy to install and manage the access control system.

RFID reading

The 2N Access Unit M supports the reading of RFID cards at frequencies of 125 kHz and 13.56 MHz, with additional support for NFC technology. Supported cards include:

• In 4xxx
• ISO 14443A (Mifare, DESFire)
• PicoPass (HID iClass)
• Felica ST SR (IX)
• 2N® Mobile Key

Connection and Power Supply

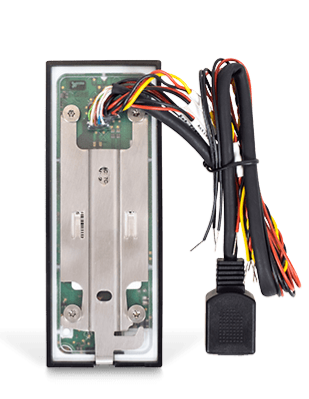

The device can be connected and powered via a single UTP cable, simplifying installation and reducing cabling costs.

Environmental Resistance

Built with robust materials such as ASA/PC and 3 mm chemically tempered glass, the 2N Access Unit M is IP55 rated, ensuring adequate protection from weather and extreme environmental conditions.

The unit operates in a temperature range from -40 °C to 60 °C and relative humidity from 10% to 95% (non-condensing), with a maximum operating altitude of 2000 m above sea level.

Dimensions and Weight

The dimensions of the device are 132 mm (height) x 50 mm (width) x 27 mm (depth), with a weight of 460 g.

Additional Features

The 2N Access Unit M includes features such as active switching output (8 to 12 V DC) and a tamper break, which is part of the device's inputs (Input 1, 2).
