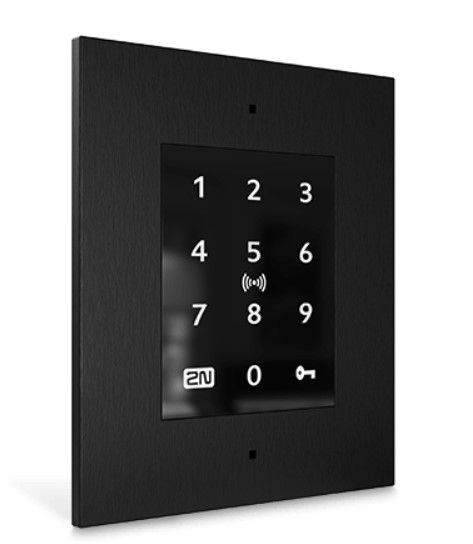

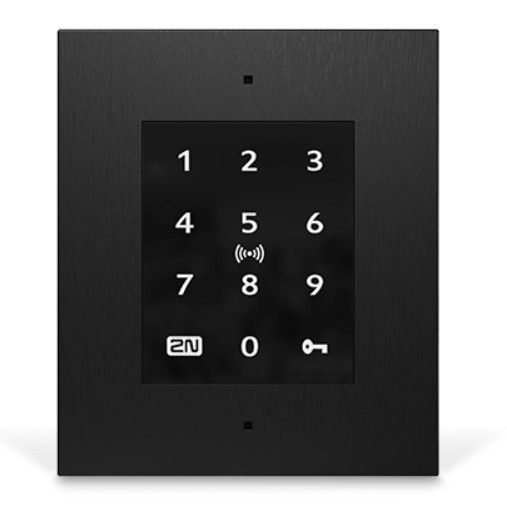

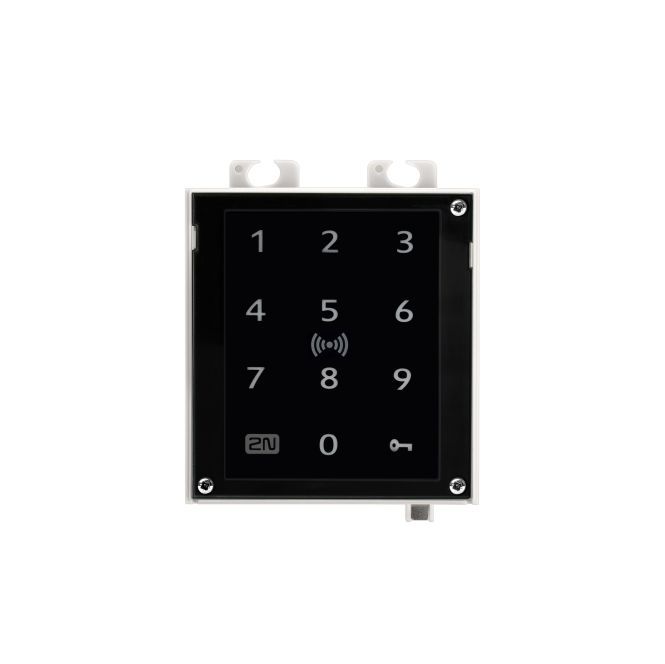

9160336-S 2N Access Unit 2.0 Touch keypad & RFID

The 2N Access Unit 2.0 Touch Keypad & RFID (code 9160336-S) is a compact and versatile access control unit designed to meet the highest security requirements. This device combines the functions of a traditional controller with those of a final access device, based entirely on IP technology.

Key Features

The 2N Access Unit 2.0 Touch Keypad & RFID integrates an RFID card reader and a touch numeric keypad, offering a complete solution for access control.

RFID reader

• Support for 125 kHz (EM4100, EM4102, Prox) and 13.56 MHz (ISO14443A, ISO14443B, NFC) frequencies
• Reading the serial number of ID cards and PACs (HID iClass cards with SIO object)

Touch keyboard

• Capacitive touch technology with high touch layer sensitivity (0.1 pF)
• Regular automatic calibration (SmartSence) to avoid false touches on wet surfaces
• Configurable background brightness indication and acoustic response for each touch on the keyboard

Installation and Configuration

The installation is simple and requires only an Ethernet cable with PoE power, plus the ability to directly connect a port magnet and a REX button to the device.

Connectivity and Management

• Ethernet connection with PoE support (802.3af, Class 0 - 12.95W)
• Remote management through the 2N® Remote Configuration service or using the 2N® Access Commander software for bulk management

Security and Authentication

The device supports the transition from obsolete 125 kHz technologies to more secure 13.56 MHz cards, ensuring a high level of security. The solution also includes two-factor authentication, combining the RFID reader with the touch keyboard.

Encryption and Security

• RSA-1024 and AES-128 encryption
• Receiver sensitivity up to -93 dBm

Mechanical and Environmental Characteristics

The device is built with a sturdy nickel-plated and black zinc frame, with an IP54 and IK08 protection rating.

• Operating temperature: -40°C ~ +60°C
• Storage temperature: -40°C ~ +70°C
• Operating relative humidity: 10%-95% (non-condensing)
• Dimensions (1-module solution): 107 (L) x 130 (H) x 28 (D) mm for the wall mounting frame, 130 (W) x 153 (H) x 5 (D) mm for the recessed mounting frame
• Maximum weight: 0.8 kg

Compatibility and Integration

The 2N Access Unit 2.0 is compatible with 2N® IP Verso series modules, including RFID readers, keyboards, fingerprint readers, Bluetooth, I/O modules, and Wiegand.

In addition, it supports the 2N® Mobile Key application, which transforms the smartphone into an access card, and the 2N® Network Scanner application for the detection of 2N devices on the network.
