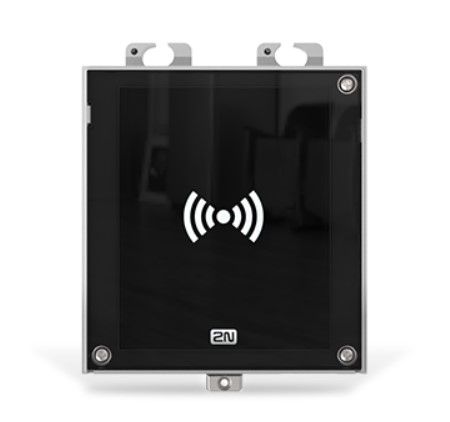

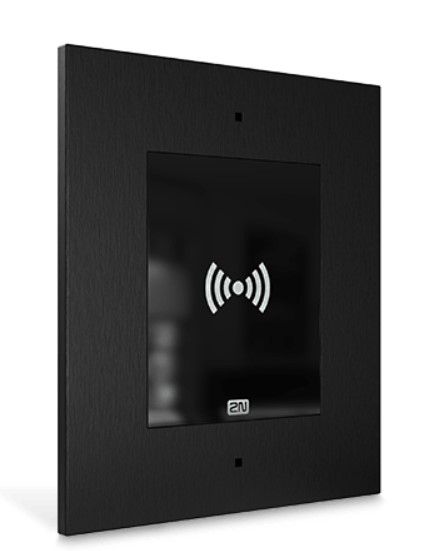

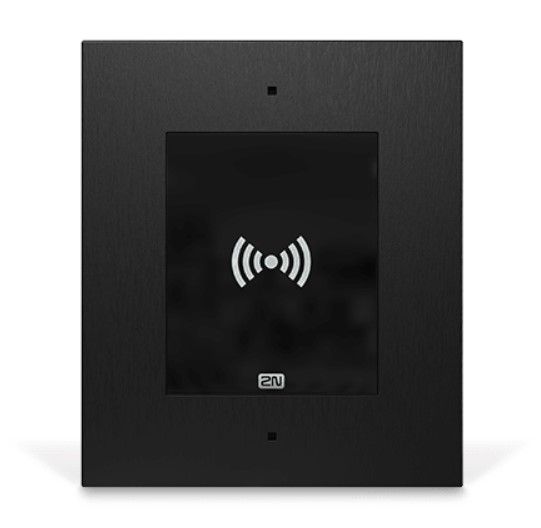

9160344-S 2N Access Unit 2.0 RFID - 125kHz, secured 13.56MHz

2N 9160344-S Product Description

The 2N 9160344-S card reader module is an essential component of the 2N Access Unit 2.0 access control system. This module offers a robust and versatile solution for access control using contactless cards or electronic keys.

Technical characteristics

The reader module supports two main frequencies: 125 kHz and 13.56 MHz, allowing compatibility with a wide range of electronic cards and keys on the market.

• Supported Frequencies: 125 kHz and 13.56 MHz
• Supported Card Types:
  • 125 kHz: EM4100, EM4102, HID Prox
  • 13.56 MHz: ISO14443A, ISO14443B, NFC, HID iClass (with SIO object)
• Power supply: PoE (IEEE-802.3af) or 12 V DC/1 A
• Network Interface: 10/100BASE-TX with Auto-MDIX, RJ-45 connector
• Recommended Cables: CAT-5e or higher
• Switched Outputs: Active switched output: 8-12 V DC/600 mA maximum; Passive switched output: NO/NC contacts up to 30 V/1 A AC/DC
• Inputs: 2 inputs in passive/active mode (-30 V to +30 V DC)
• Tamper Switch: Integrated in the module
• Audio: Buzzer (97 dBA)

Supported Protocols

• DHCP option 66
• SMTP
• TFTP
• HTTP
• HTTPS
• Syslog

Installation and Use

Installing the module is quick and simple, requiring only the connection of an Ethernet cable. This solution is ideal for environments where reliable and versatile access control is necessary, allowing users to use the cards or electronic keys already in their possession.
