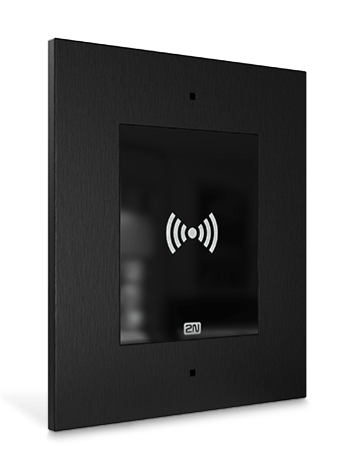

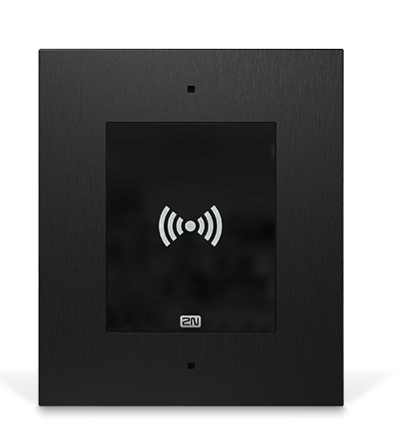

9160344 2N RFID 2.0 Access Unit - 125KHz- 13.56MHz

The 2N 9160344 product is an access control module part of the 2N Access Unit 2.0 series, designed to provide a complete and reliable solution for access control.

Key Features

This module integrates a contactless card reader and electronic keys, supporting frequencies of 125 kHz (EM-41xx) and 13.56 MHz. The compatibility with these frequencies makes it versatile for various types of access control applications.

Card reader

The card reader is NFC ready, allowing the use of contactless communication technologies. This functionality allows for efficient and modern access management.

Feeding

The module is powered at 12VDC and also supports PoE power (IEEE-802.3af), simplifying installation and reducing the need for additional cabling.

Integration and Compatibility

The 2N 9160344 is designed to work in synergy with the entire range of 2N products, as well as with third-party technologies, allowing the creation of complete and customized access control solutions.

fitment

The module is available in different mounting options, including the built-in version (Unterputz), which allows an elegant and functional integration into existing structures.

Accessories and Mounting Options

• Bracket for mounting on bricks or plasterboard with special mounting frames (for example, 1-module frame, Part No. 9155011, and 1-module flush mounting box, Part No. 9155014).
• Compatibility with other auxiliary modules such as RFID readers, keyboards, 5-button modules and Wiegand.

This module represents a robust and flexible solution for access control needs in residential, commercial and industrial environments.
