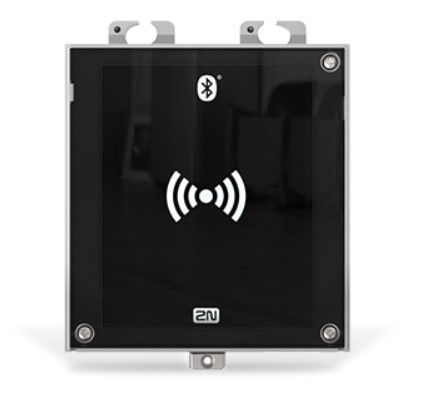

9160345 2N Access Unit 2.0 Bluetooth & RFID - 125kHz, 13.5

The 2N Access Unit 2.0 is a versatile and technologically sophisticated access control device, designed to meet the needs of modern and traditional access in a single reader.

Key Features

This device supports two RFID frequencies: 125 kHz and 13.56 MHz, allowing compatibility with a wide range of cards, including EM4100, EM4102, HID Prox, ISO14443A, ISO14443B and NFC. In addition, it offers the possibility of smartphone authentication using Bluetooth technology and the 2N Mobile Key application.

Power and Connectivity

The unit can be powered via PoE (802.3af, class 0-12.95W) or through a 12V ± 15% /2A DC power supply. Network connectivity is guaranteed by a 10/100BASE-TX LAN interface with auto-MDIX and an RJ-45 connector.

Technical Specifications

• RFID support: 125 kHz and 13.56 MHz
• Card compatibility: EM4100, EM4102, HID Prox, ISO14443A, ISO14443B, NFC
• Bluetooth technology with adjustable range (short ~ 0.5m, medium ~ 2m, long ~ up to 10m)
• Operating temperature: -40°C to +60°C
• Receiving sensitivity: up to -93dBm
• Supported protocols: DHCP opt. 66, SMTP, 802.1x, TFTP, HTTP, HTTPS, Syslog
• Audio: buzzer (97dBA, 2730Hz) and microphone
• Input: 2 inputs in passive/active mode (-30V to +30V DC)
• Structure: sturdy zinc frame with surface finish (nickel and black)
• Dimensions (surface mount): 107 (W) x 130 (H) x 28 (D) mm

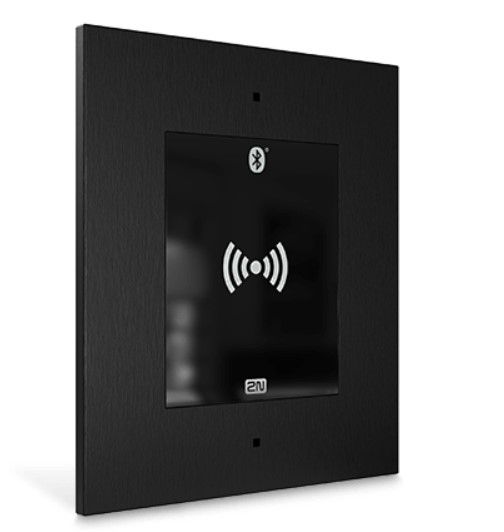

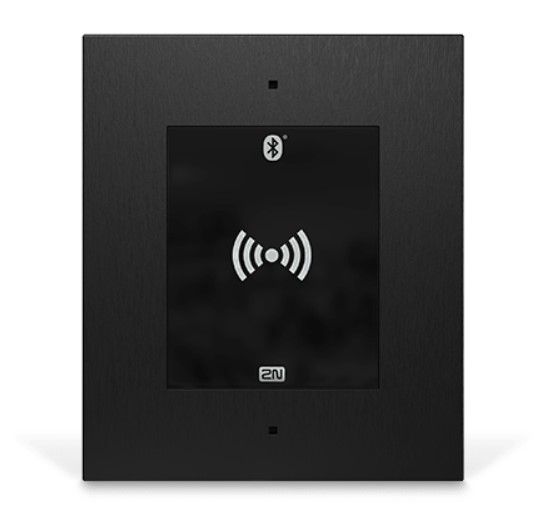

• Dimensions (flush mount): 130 (W) x 153 (H) x 5 (D) mm
• Dimensions (flush mounting box): 108 (W) x 131 (H) x 45 (D) mm
• Protection class: IP54 and IK08
• Net Weight: 0.60kg
• Gross weight: 0.70kg

Environment of Use

The 2N Access Unit 2.0 is ideal for luxury residential environments and for any scenario where reliable and flexible access control is needed. Its robust structure and high technical specifications make it suitable for continuous use under varying environmental conditions.
