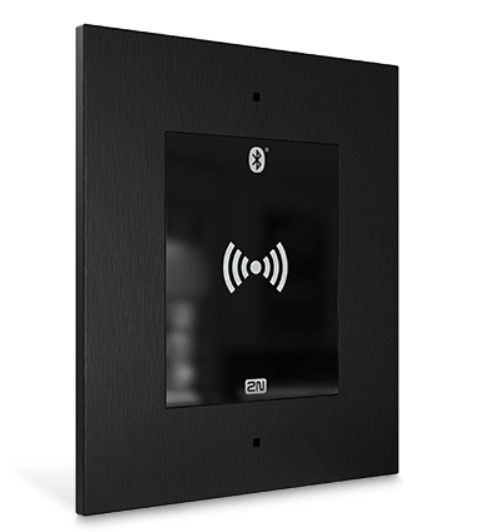

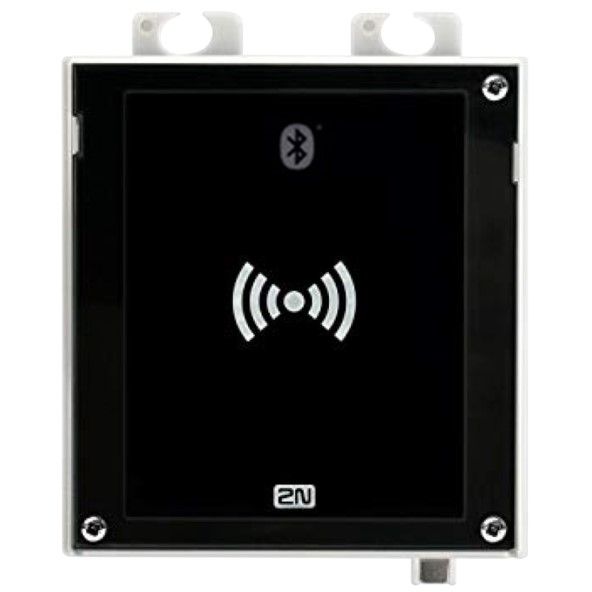

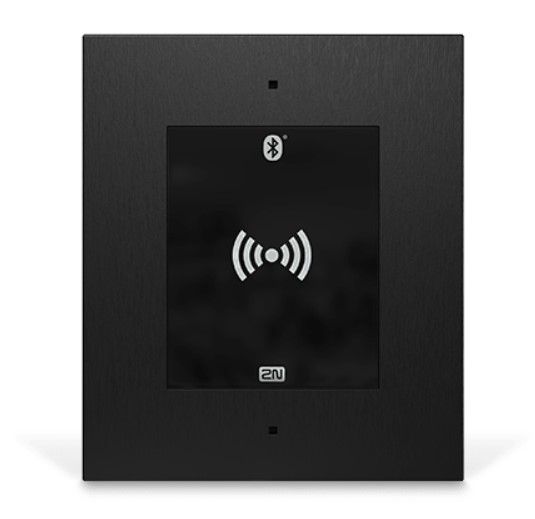

9160335 2N Access Unit 2.0 Bluetooth & RFID

The 2N Access Unit 2.0 with Bluetooth and RFID reader (code 9160335) is a versatile and robust access control device, designed to meet the highest security requirements in professional environments.

Key Features

This device combines wireless communication and proximity recognition technologies to offer a complete access control solution.

Power and Connectivity

The unit can be powered via PoE (802.3af, class 0-12.95W) or through a 12V ± 15% /2A DC power supply. Network connectivity is guaranteed by a 10/100BASE-TX LAN interface with auto-MDIX, using an RJ-45 connector.

RFID reader

The RFID reader supports 125KHz and 13.56MHz frequencies, allowing the reading of a wide range of RFID cards, including EM4100, EM4102, HID Prox, ISO14443A, ISO14443B and NFC. This allows compatibility with the main radio frequency identification technologies on the market.

Bluetooth

Audio and Signals

The unit is equipped with a high-intensity buzzer (97dBA, 2730Hz) and a microphone, ensuring clear and audible communication.

Inputs and Protections

There are two inputs that can operate in passive or active mode (-30V to +30V DC). The sturdy zinc structure with surface finish (nickel and black) offers IP54 and IK08 protection, making it suitable for use in harsh environments.

Protocols and Compatibility

The device supports various protocols, including DHCP option 66, SMTP, 802.1x, TFTP, HTTP, HTTPS and Syslog, ensuring easy integration with existing network systems.

Operating Temperature and Dimensions

The unit can operate in a temperature range from -40°C to +60°C. The dimensions vary depending on the type of mounting: 107 (W) x 130 (H) x 28 (D) mm for surface mounting, 130 (W) x 153 (H) x 5 (D) mm for recessed mounting and 108 (W) x 131 (H) x 45 (D) mm for the recessed mounting box.

Peso

The net weight of the unit is 0.60kg, while the gross weight is 0.70kg.
