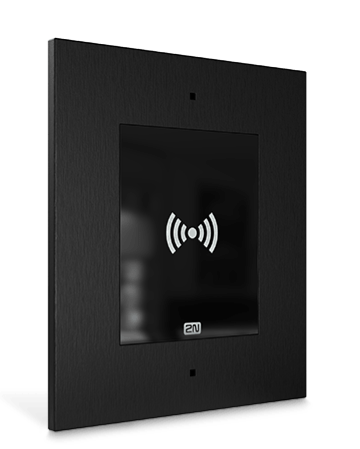

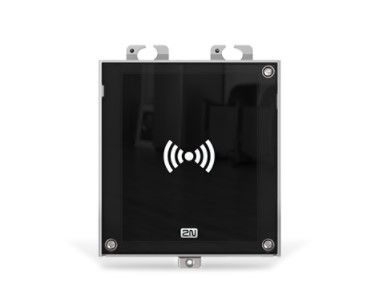

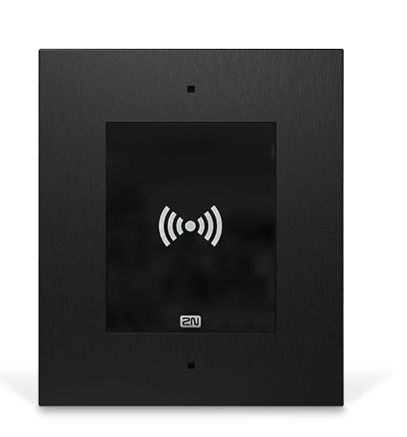

9160341 2N Access Unit 2.0- 125KHz

The 2N Access Unit 2.0 with 125 kHz RFID reader (product code 9160341) is an innovative solution for access control based on IP technology. This device combines the functions of a traditional controller with those of a final access device.

Key Features

The 125 kHz RFID reader supports EM4xxx, EM4100 and EM4102 cards and electronic keys, as well as HID Proximity proximity cards. This makes the device ideal for environments that require reliable and easy-to-manage access control.

Mounting Options

The 2N Access Unit 2.0 offers several mounting options, including wall mounting, recessed mounting in bricks or plasterboard, and mounting on uneven surfaces with special roof frames.

Power and Connectivity

The device can be powered via PoE (Power over Ethernet) according to the 802.3af standard or through an external 12 V. Connectivity is guaranteed by a 10/100BASE-TX LAN interface with auto-MDIX and an RJ-45 connector.

Security Features

The 2N Access Unit 2.0 includes integration with electronic lock switches, with large and customizable settings. The device also supports synchronizing the time via SNTP and sending emails via SMTP. Configuration and firmware updates can be performed via the web via HTTP or TFTP.

Interface and Sensors

• The device can be integrated with a numeric keypad with backlight, a fingerprint reader or a Bluetooth module.
• The touch keyboard uses capacitive technology with high sensitivity and automatic calibration to avoid false contacts on wet surfaces.
• The device includes an audio buzzer and microphone.

Mechanical Characteristics

The 2N Access Unit 2.0 features a sturdy zinc frame with a surface finish (nickel and black). Operation is guaranteed in a temperature range from -40°C to +60°C and relative humidity from 10% to 95% (non-condensing). The dimensions of the device vary depending on the mounting option chosen.

Integration and Management

The device can be easily integrated with the 2N® Access Commander software for managing access control and IP intercoms. In addition, it supports the 2N® Mobile Key application that transforms the smartphone into an access card.
