9159014UK 2N 2Wire UK

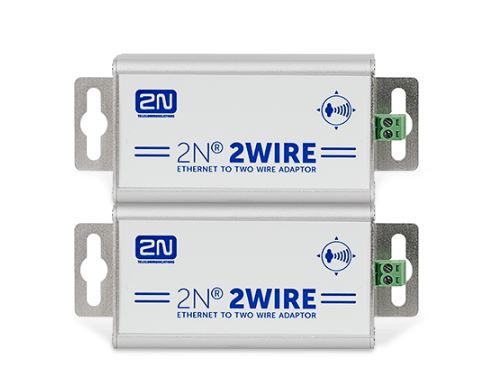

The 2N 9159014UK is a set of two conversion units designed to connect IP devices in areas where there is no IP network infrastructure. This system is especially useful for critical applications that require a stable and reliable connection.

Key Features

The 2N 2Wire allows you to use two-wire cables, such as Cat 5e or Cat 6, to extend the Ethernet network up to a maximum distance of 220 meters with Cat 6 cables.

Ethernet interface

• Connector type: RJ45
• Speed: 10/100 Base-T, half-duplex/full-duplex, auto-negotiation
• Compatible with IEEE 802.3af/at 40W, PoE+

Installation Requirements

• Cable type: 2-wire, Cat 5e, Cat 6 or similar
• Impedance: 25Ω to 100Ω
• Transfer distance: max. 220m with Cat 6
• Maximum number of conversion unit sets per non-configurable switch: 4

Transfer Method

• Access method: CSMA/CA and TDMA
• Modulation method: Windowed OFDM
• Frequency band: 1.8MHz to 30MHz

LED Indicators

• Power supply: Blue — on
• Connectivity: Green — active connection
• PoE: Green — active connection

Electricity supply

• AC input: 100~240V AC, 50~60Hz
• DC Output: 48V DC/0.84A~1.3A

Mechanical Properties

• Dimensions: 40 x 40 x 75mm (h x w x d)
• Weight: 120g
• Material: Extruded aluminum
• Operating temperature: -10°C — 50°C
• Storage temperature: -30°C — 70°C

This system is particularly suitable for applications in elevators and other areas where connection stability is crucial.
