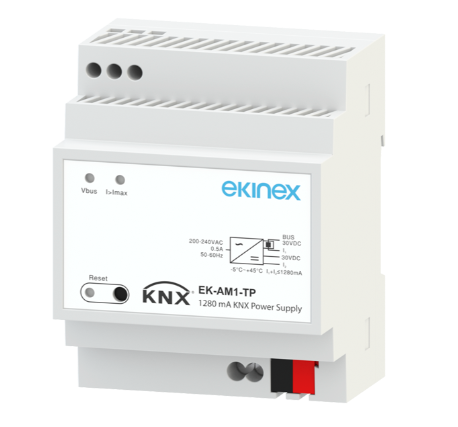

EKINEX EK-AM1-TP 1280 mA bus power supply with 30 Vdc auxiliary output

1280 mA bus power supply with 30 Vdc auxiliary output

Description:
The Ekinex® EK-AM1-TP power supply produces and monitors the 30 Vdc voltage necessary for the operation of the KNX bus system. A coil integrated in the device provides for the decoupling between the power supply and the bus line. The output has overload and short circuit protection. It has an additional 30 Vdc output which can be used for the auxiliary power supply of other SELV safety extra low voltage devices. The total current made available by the two outputs (KNX bus line and auxiliary power supply) cannot exceed 1280mA. The device is able to support short mains voltage interruptions (max 200 ms).
