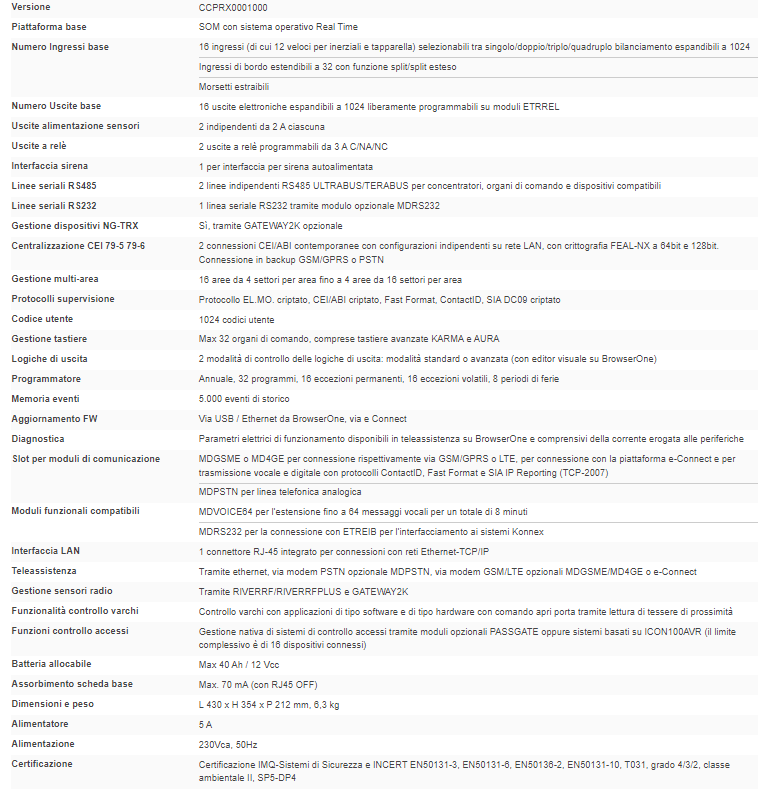

ELMO PRX1024 1024‑input wired/wireless hybrid control unit with integrated LAN interface

1024-input wired/wireless hybrid control unit with integrated LAN interface and 2 independent RS-485 serial lines PRX1024

is a PROXIMA series anti-intrusion control unit with 16 on-board inputs expandable to 1024. Based on a SOM platform with Real Time operating system, PRX1024 is characterized by extreme versatility thanks to its modular architecture and an intrinsic openness to both EL.MO. and third-party building automation systems. It integrates 2 separate and independent RS485 ULTRABUS/TERABUS serial lines for connecting EL.MO smart devices. (keyboards, sensors, sirens...), 2 slots for functional modules of the Holiday/Pregio series (MDGSME/MD4GE for GSM/LTE interfacing and MDPSTN for connecting to a telephone line) and an RJ-45 10/100 Mbps LAN connector for connecting to remote management and supervision systems such as e-CONNECT or GLOBALPRO. It can manage multiple types of inputs: fast, single, double, triple and quadruple balancing, selectable from BrowserOne software. Protecting environments with PRX1024 can also include access control: it manages access control systems natively through optional PASSGATE modules or systems based on ICON100AVR (the total limit is 16 connected devices). Finally, PRX1024 offers the possibility of programming up to 255 logical schemes through a graphic editor
